Name: 8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
Brand: Wenyang Machinery
Price: 1 USD

Add to Cart

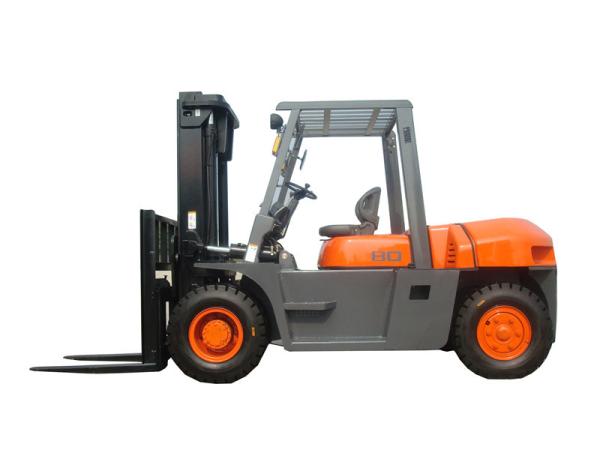

Wenyang Machinery brand forklift 8ton diesel forklift truck with ISUZU 6BG1 engine made in China

Model			FD80T
Load capacity		kg	8000
Load center		mm	600
Power unit			Diesel
Operator type			Driver/seat
Tire type	Front/rear		Pnenumatic
Wheel	Front/rear		4/2
Max. lifting height		mm	3000
Free lift		mm	205
Fork size	LWT	mm	122017075
Tilt range	Mast forward/backward	deg	6/12
Overall length(without fork)		mm	3740
Total width		mm	1995
Mast height (fork lowering)		mm	2625
Overall height fork raised	With backrest	mm	4545
Height to head guard		mm	2450
Turning raduis(outside)		mm	3550
Front face of fork to front axle		mm	620
Min. right angle stacking aisle	pallet size :1100×1100 add clearence	mm	5770
Speed	Max Travelling full/no load	km/h	26/30
	Lifting full/no load	mm/s	450/550
	Lowering full/no load	mm/s	450/500
Max.drawbar pull	full/no load	kg	5300/2150
Gradeability at 1.6km/h	full load	%	24
Max. Gradeability	full/no load	%	26/22
Truck weight		kg	10450
Weight distribution	Full load front/rear	kg	16370/2080
Weight distribution	No load front/rear	kg	4060/6390
Tires	Number	front/rear	4/2
	Model	front axle	8.25x15-14PR
	Model	rear axle	8.25x15-14PR
Wheelbase		mm	2400
Tread	Front/rear	mm	1470/1700
Ground clearence	At lowest point(mast)	mm	190
Ground clearence	Frame	mm	230
Brake	Service brake		power bake
Brake	Parking brake		Mechanical-hand lever
Battery	Voltage/capacity	V/AH	2x12V-80AH
Engine	Model		ISUZU 6BG1
	Rated power	PS	112/2000
	Rated torque	kg-m	42.5/1500
	Number of cylinders		6
	Placement	L	6.494
	Fuel tank capacity	L	140
Transmission	shift stage(front/rear-type)		2-2 power shift T/M
Operating pressure	Hydraulic system pressure	kg/cm²	200
