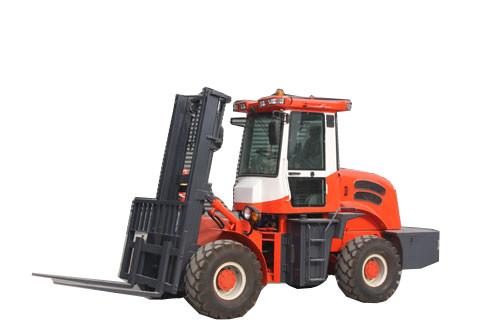

High quality 3.5T rought terrain diesel forklift truck with CE with
Weichai engine
Performance:
▼ Terrain forklift is used at the airport, docks, station and other
poor road conditions for material distributions. it has good
maneuverability, reliable ability.
▼Terrain forklift runs faster than ordinary forklift, their
mobility is obvious with high engine power and terrain performance.
▼ They apply to the mountains, plateaus pavement, snow jobs,
construction sites, mines, orchards pastures, rough roads and
mining enterprises.
▼The product can use Yuchai 4105 engine(super-charged)and Cummins
engines, it can meet different customers at home and abroad.
Features:
1. All-hydraulic steering system, greatly reduce operator fatigue;
using transverse cylinder steering mechanism with reliable and
compact structure.
2. Digitized intelligent traffic monitoring system allows the
operator to easily get forklift operation information, make
forklift operation to achieve full control.
3. Humanization design, using multifunction steering
,European-style instruments, and equipped with car cigarette
lighter; luxurious seat with seat belts, joystick makes it easy,
safe ,flexible to operate.
4. Lengthened and widened wheelbase and wheel track , get better
stability, more suitable for terrain conditions,
5. Air filter with vacuum alarm, double filtration; external high
exhaust muffler, plus a protective shield against hot, ensure
security
Specification:
| Item | Unit | WY3500 |
| Rated Load | kg | 3500 |
| Length | With Fork | mm | 5600 |
| Without Fork | mm | 4300 |
| Width | mm | 2000 |
| Height | mm | 2750 |
| Max lifting Height | mm | 5150 |
| Wheel Base | mm | 2300 |
| Front Over hang | mm | 430 |
| Front Wheel tread | mm | 1750 |
| Back Wheel tread | mm | 1510 |
| Ground Clearance | mm | 300 |
| Max. lift Height | mm | 4000 |
| Operating Weight | kg | 4840 |
| Max. Lift Speed | mm/s | 300 |
| Min. Turning Radius | mm | 4500 |
| Max. Speed | km/h | 25 |
| Max Climbing Speed | % | 20 |
| Max Traction With Load | kn | 30 |
| Load Center Distance | mm | 500 |
| Engine Model | mm | WHEICHAI 4100TUBO-Charged |
