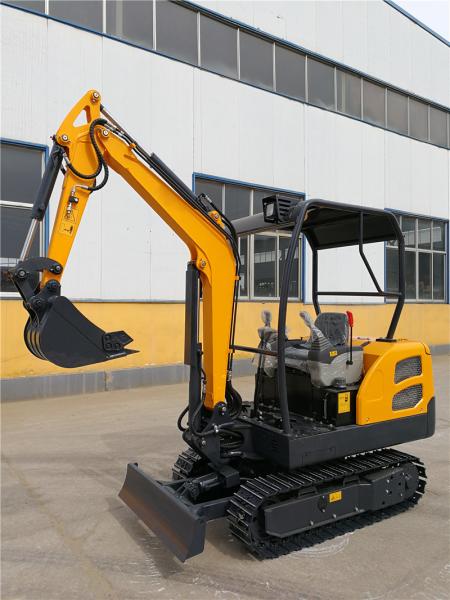

China 360° rotation steel type crwaler excavator with break hammer

DESCRIPTION

1-China laidong KM385B type engine , 18.1kw/2200rpm, no turbocharged

2-China brand pump and valves

3-Imported international brand slewing motor and slewing reducer

4-Imported international brand driving motor

5-Open cabin

6-Hydraulic pilot servo operation system, two rods controlling the driving and steering

7-Rubber track :230mm

8-With broken pipeline system

9- Grab capacity: 0.06m³

10-Boom can deflection to left or to right

11-Installed dozer blade

MAIN TECHNICAL PARAMETER

MAIN SEPCIFICATIONS
Bucket capacity	0.06m³
Swing speed	10~12 rpm
Max. gradeability	35°
Max. Bucket digging force	14KN
Max. Arm digging force	10KN
Engine model	KM385B
Power /Rotation speed	18.1kw/2200rpm
Hydraulic system pressure	16Mpa
Machine weight	1800kg
MACHINE SIZE
Overall dimension (LWH)	3865mm1050mm2270mm
Height of cabin	2270mm
Axle base(Track length on ground)	1230mm
Track gauge	820mm
Min.Ground clearance	210mm
Swing radius at tail	1125mm
Width of track	230mm
WORKING RANGE
Max. Digging height	3365mm
Max. Dumping height	2385mm
Max. Digging depth	2050mm
Max. Vertical digging depth	1955mm
Max. Digging radius	3860mm
Min .swing radius	1125mm
Max. Lifting height of blade	230mm
Max. Cutting depth of blade	275mm
Boom swing angle(Left)	75°
Boom swing angle(Right)	45°
